APlusLift 14,000LB 4-Post Heavy Duty Lift AL-14C
3499.50 $ 6999 $
Hurry! only 6 left in stock!
Real time 1 visitors right now.
00 Day
00 hour
59 minute
59 second
All 4-Post Lifts and Jacks.
The lift is expected to be delivered in about 60-90 days starting from the day the lift is ordered. Note that the current HW-12S is all blue color (not gray-blue). We require a 10% down (non-refundable) and the remaining balance paid before we ship it to your location. Please email us if you are interested.
Industry leading 3 YEAR WARRANTY (a $499 value!)
Drive Through Width 106 9/32"; Lifting Height: 77 11/32"; Overall Dimensions 243 1/2"L x 134 3/8"W x 106 9/32"H
Free Approach Ramps
Time-Tested Car Lift Model for 30 Years
Powder Coated Finish with Superior Corrosion Resistance

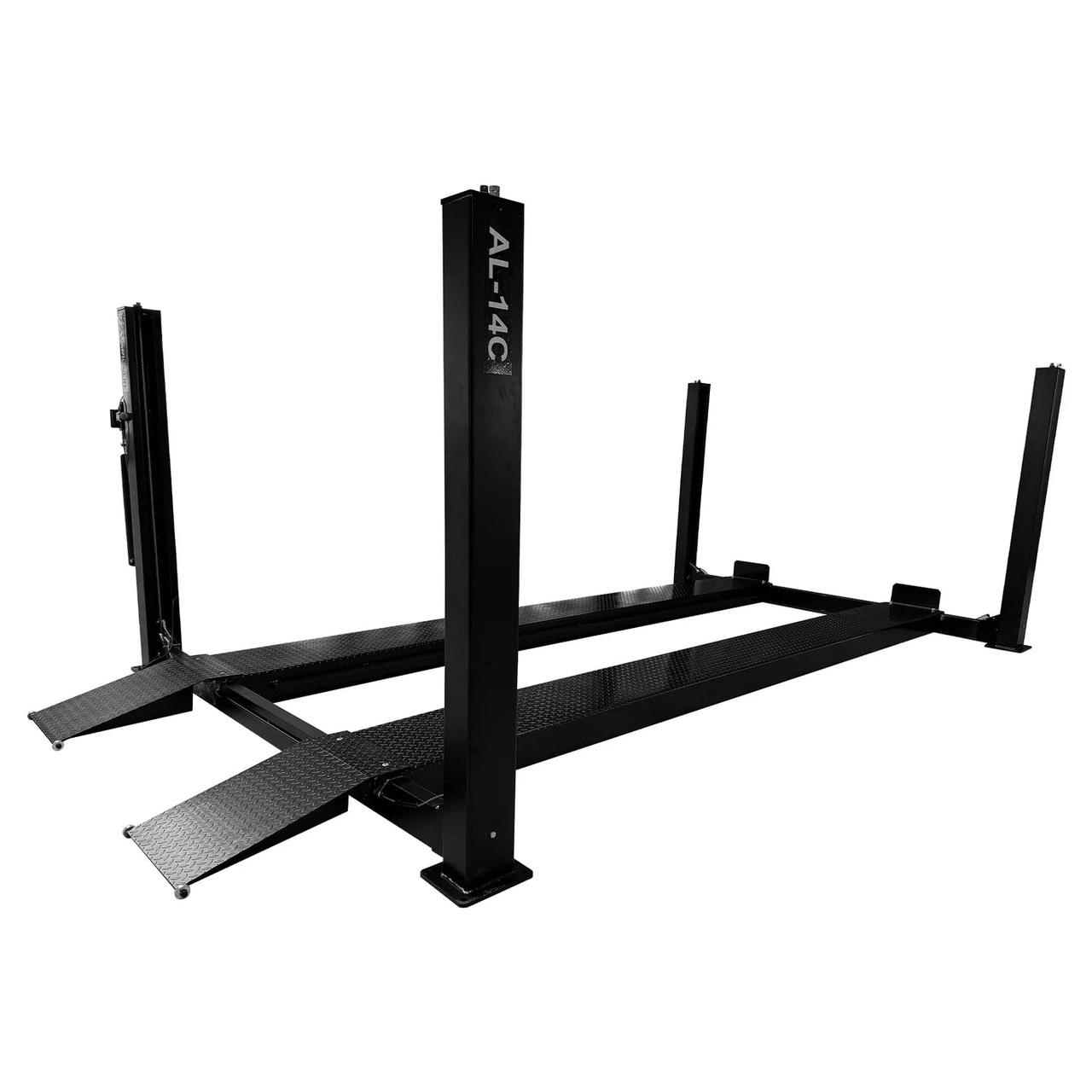

APlusLift AL-14C (HW-14AL) 4-Post 14,000LB Lift is designed and built to commercial grade standards and will provide many years of service. It is built with quality materials and good workmanship and is powder coated for superior corrosion resistance.
APlusLift AL-14C (HW-14AL) 4-Post 14,000LB Lift package includes two approach ramps.
Free shipping to lower 48 states with forklift (or similar) on-site, or free pickup at nearby terminal. Car lifts require on-site forklift (no liftgate). We strongly recommend against renting a forklift; expense not reimbursed. See shipping policy below for limited access/remote/high-cost areas.
Warehouse Pickup Locations (Contact Us for $500 Discount): Charlotte (NC), Chicago (IL), Dallas (TX), Jacksonville (FL), Kansas City (MO), Las Vegas (NV), Los Angeles (CA), Mobile (AL), Ontario (OH), Portland (OR), Tacoma (WA), Virginia Beach (VA), and Watsontown (PA).
Frequently Asked Product, Order, and Shipping Questions and Technical Questions
Specifications and Features | |||||||||
| Model | AL-14C(HW-14AL) (This Model) | AL-12A for Comparison | |||||||
| Manual | HW-14AL Manual | AL-12A Manual | |||||||
| Warranty | 3 Years (36 Months) | 3 Years (36 Months) | |||||||
| Lifting Capacity | 14,000 LB | 12,000 LB | |||||||
| Overall Length | 243 1/2" | 230" | |||||||
| Overall Width | 134 3/8" | 130" | |||||||
| Drive Through Width | 106 9/32" | 113 5/8" | |||||||
| Overall Height | 83" | 87 1/2" | |||||||
| Lifting Height | 77 11/32" | 72" | |||||||
| Clearance Under Runway | 70 27/32" | 67" | |||||||
| Runway Size | 203 15/16"L x 20"W | 196"L x 23"W | |||||||
| Width Between Runways | 43" Inside-Inside, 83" Outside-Outside | 34 1/2" Inside-Inside,80 3/8" Outside-Outside | |||||||
| Runway Gauge Steel | 15/64" | 6 (13/64") | |||||||
| Column Cross Section | 7 11/16"L x 6"W | 7"L x 5"W | |||||||
| Removable Approach Ramps Size | 27 31/32"L x 20 3/32"W | 32"L x 18 1/2"W | |||||||
| Lock Positions | 10 Positions
| 14 Positions:
| |||||||
| Lifting Time | 100 seconds | 60 seconds | |||||||
| Motor | 220V Single Phase 3HP 10A (recommend a 30A breaker) | 220V Single Phase 3HP 10A (recommend a 30A breaker) | |||||||
| Hydraulic Oil | 4.3-5 gallons AW32/AW46 (Not Included) | 3-5 gallons AW32/AW46 (Not Included) | |||||||
| Concrete Thickness | 4" 3000psi | 4" 3000psi | |||||||
| Shipping Weight | 3,000 LB | 3,300 LB | |||||||
| Shipping package size | 214"L x 25"W x 31"H | 201"L x 28"W x 25"H | |||||||
| Usage | Parking/Storage/Service | ||||||||
| Finish | Powder Coated Finish with Superior Corrosion Resistance | ||||||||
| Cable | Heavy duty 15/32" diameter cables that reduce high stress on synchronization process and increase cable life | ||||||||
| Parts Included | 2 Removable Approach Ramps Included | Two Alignment Turn Plate Tables, One 6000LB Slidng Jack, Two Approach Ramps Included | |||||||
