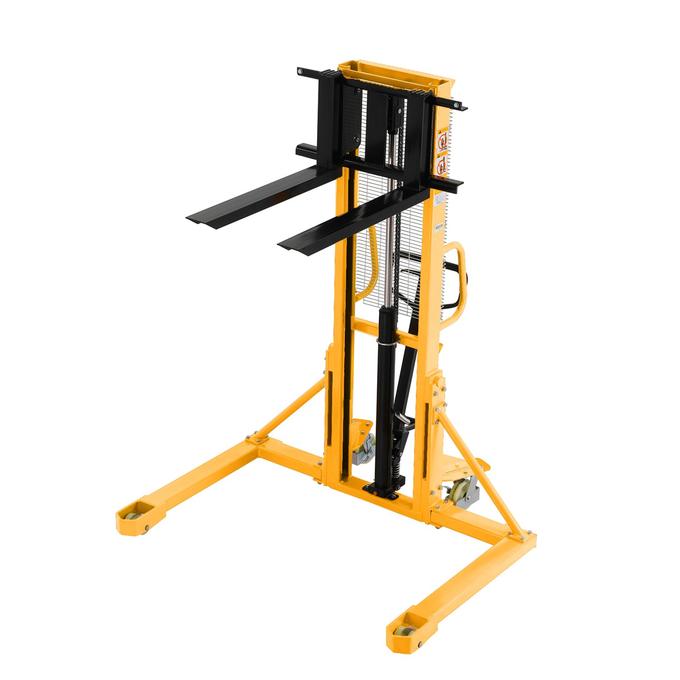

Straddle Legs 1100lbs Cap. 63" Lift Height

• Compact design for pallet, perfect stacking and pallet positioning as well as stocking and refilling shelves.
• High quality steel mast and strong steel construction ensures rigidity and durability
• High efficient pumps makes the control easier to operate
• Metal grid protects user from lift chains
• With safety wheel guard and brake system to ensure safety during operation

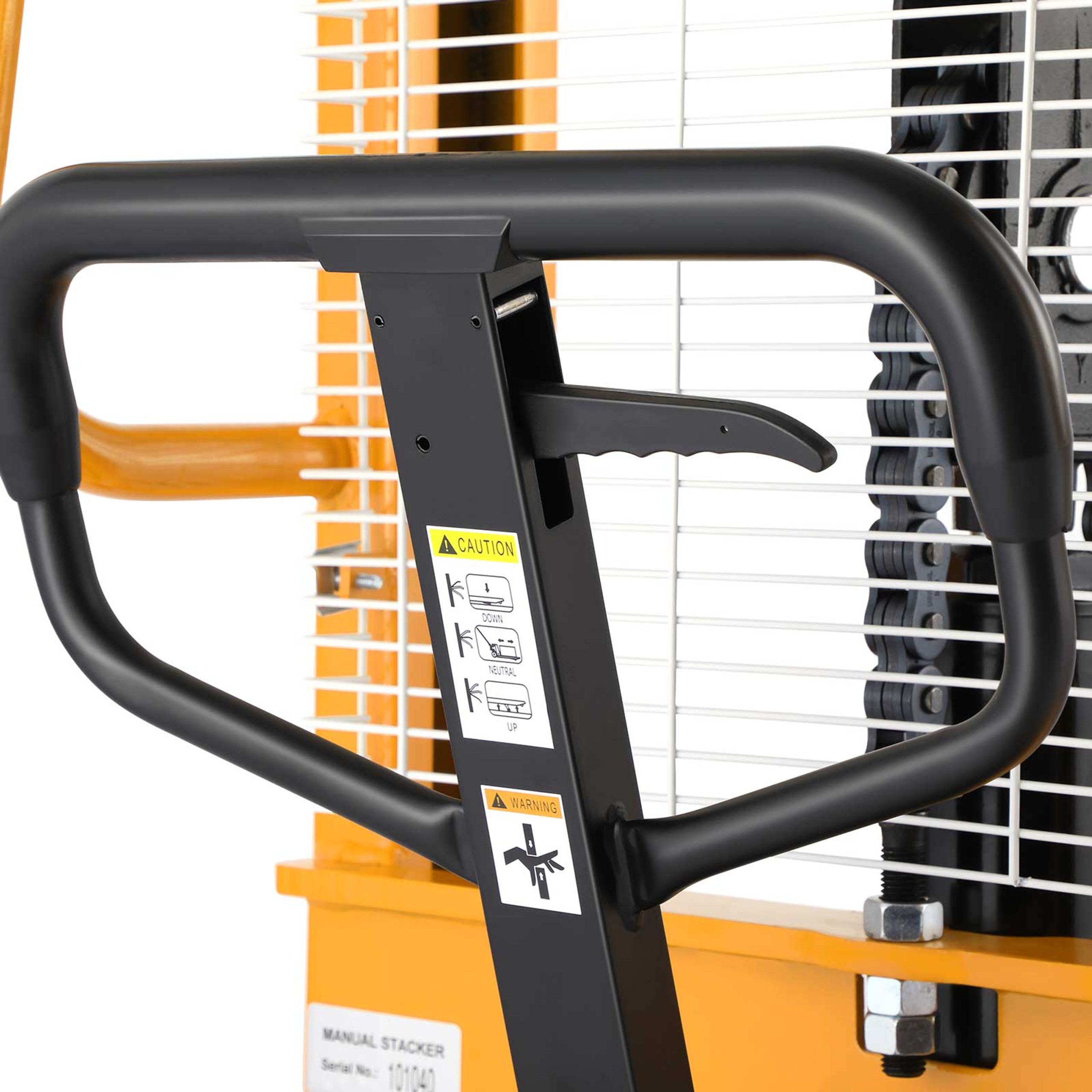

• Manually raise and lower loads with foot pump and handle operation.

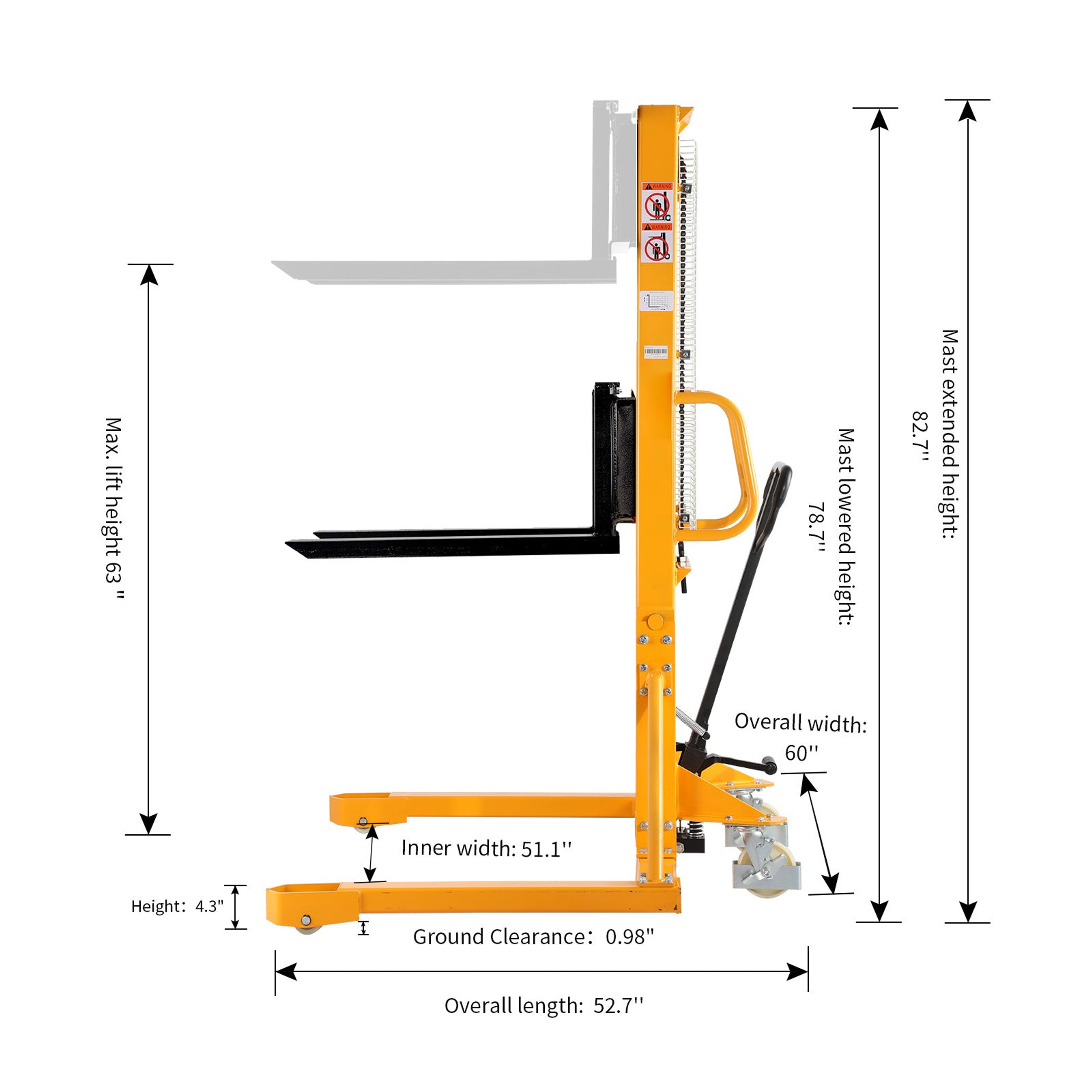

DIMENSIONS:

• Overall width: 60''
• Overall length: 52.7''
• Load center: 19.7''
• Recommended Aisle Width: 77.8"
• Turning radius: 47.2''

MAST:

• Lifting height: 63''
• Mast lowered height: 78.7''
• Mast extended height: 82.7''

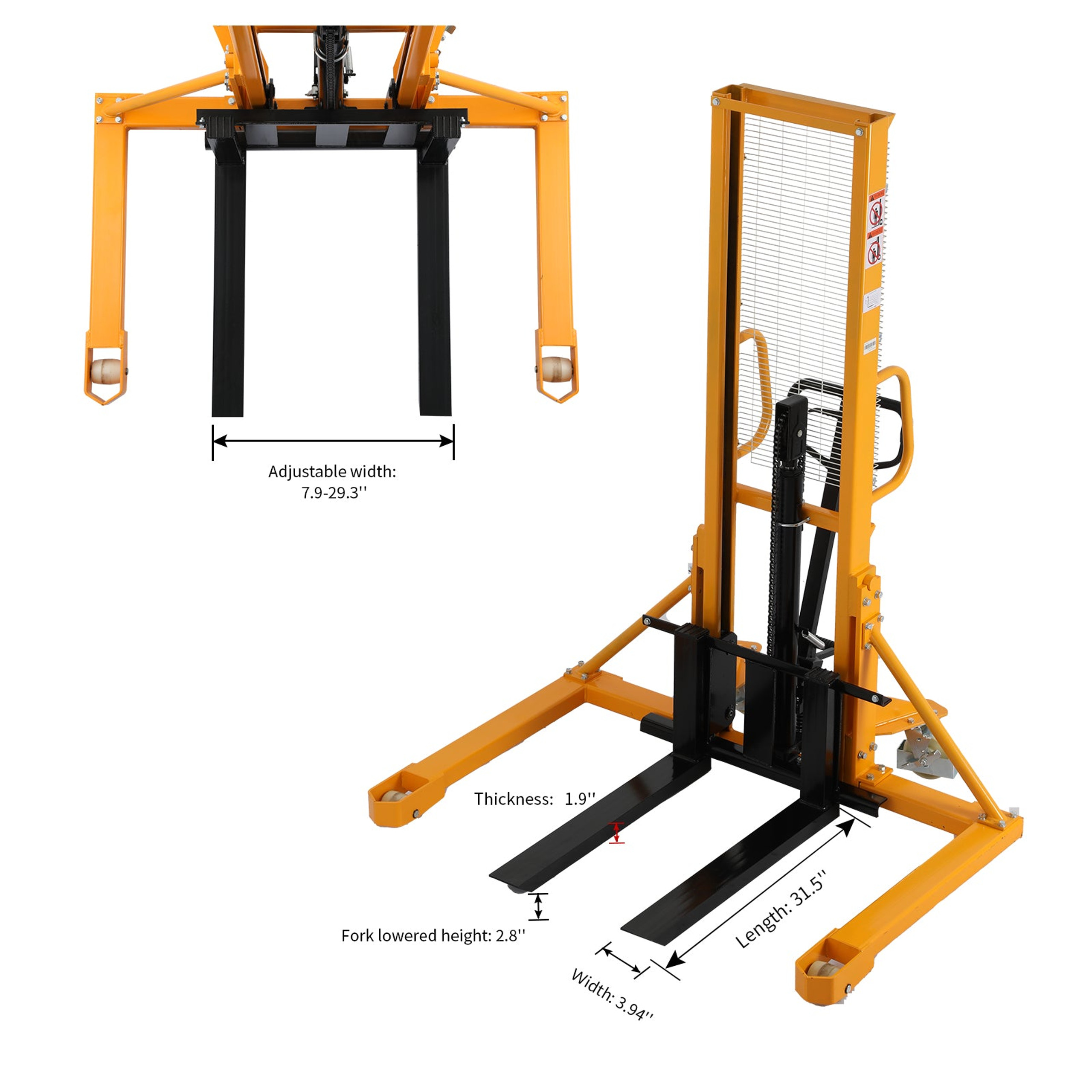

FORKS:

• Adjustable width: 7.9-29.3''
• Thickness: 1.9''
• Width: 3.94''
• Length: 31.5''
• Fork lowered height: 2.8''

STRADDLE LEGS:

• Inner width: 51.1''
• Height: 4.3''

FEATURES:

• Foot Operated Pump: Lift Height nearly 1'' per stroke
